AHD 1080P CCD Trunk Handle Rear View Camera For Universal camera

€32,01

Tax included Shipping calculated at checkout.

Specifications

Metal housing + with 360 degree rotation. Plastic housing + without 360 degree rotation.

Product variants

Delivery and Shipping

Worldwide Shipping at No Cost

Compatible with:

AHD 1080P universal rear view camera fisheye lens + compatible with CVBS

Overview:

* High definition and waterproof

* Distance reference line

* Prevent your car from bumping into others

NOTES:

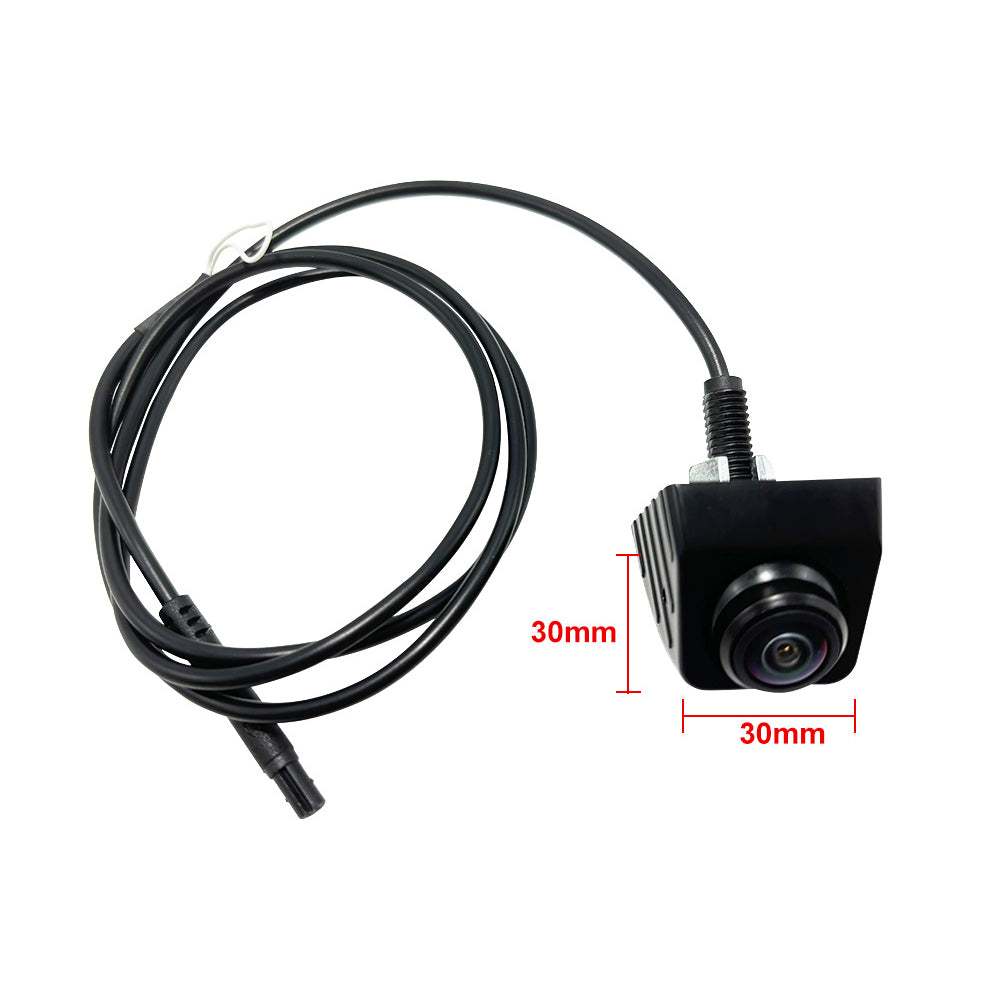

* It\'s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com

parison with your car trunk handle.

* By default, the camera will be produced as NTSC and with parking lines.

* Important: No LVDS connectors output to original screen.

Rearview camera parameters:

SKU:EW-UN-M012	SKU:EW-UN-V004
Specifications: Metal housing + with 360 degree rotation.	Specifications: Metal housing + with 360 degree rotation.
Solution: 1346+885	Solution: H63P+885
Lens: Glass Fisheye	Lens: Glass Fisheye
Sensor: Night vision CMOS	Sensor: 3D Night Vision CMOS
Format: CVBS N/AHD720P 25fps	Format: AHD1080P 25fps/CVBS N
Pixels: 100W	Pixels: 100W
Interface: BMW head/AV	Interface: AV Rearview Camera
Angle: Horizontal 140°	Angle: Horizontal 140°
Signal-to-noise ratio: ≥43dB	Signal-to-noise ratio: ≥43dB
White balance: Automatic	White balance: Automatic
Synchronization mode: Internal synchronization	Synchronization mode: Internal synchronization
Working temperature: -20℃-80℃	Working temperature: -20℃-80℃
Waterproof level: IP68	Waterproof level: IP68
Power adapter: 9V-15V±10%	Power adapter: 9V-15V±10%
Working current: 85mA±5mA	Working current: 85mA±5mA
